High Strength Spiral Bevel Gear for Crusher Reducers

Name: High Strength Spiral Bevel Gear for Crusher Reducers
Brand: Ruida
Price: 1 USD

Brand Name : Ruida

Model Number : custom made

Certification : ISO9001

Place of Origin : Hunan,China

MOQ : 1

Price : Negotiable

Payment Terms : 50% T/T, 50% T/T before shipment

Supply Ability : 5000 sets/year

Delivery Time : 45-60 days

Packaging Details : wooden packing

Accuracy Grade : grade 5-8 (depond on requirementt)

machinery test report : Provided

Material : Carbon Steel, Alloy Steel, Etc.（Customizable)

Teeth Number : Based On Drawings

Contact Now

High Strength Large Spiral Bevel Gear Crusher Reducer Accessories

Bevelgear milling machines

Our company possesses a series of spiral bevel gearmiling machines with different processing specifications.with a processing range of 50mm to 2300mm, which issufficient to meet the majority of the market's requirementsfor spiral bevelgear milling processing.

Device Name	Bevel gear milling machines
Max.workplece diameter	50mm-2000mm
Max.module range	2-40mm
Max.workpiece shaftdiameter	diameter220mm, axiallength 1300mm
Geartoothtype	2000sets/year
Highest machining accuracy	DIN 3965-86 grade7
production capacity	2000 sets/year
Spiralanglerange	0-50°
Max.face width	10-350mm
Axioloftset	±50-100mm

High Strength Spiral Bevel Gear for Crusher Reducers

Product Tags:

high strength spiral bevel gear

crusher reducer bevel gear

durable spiral bevel gear

Wholesale High Strength Spiral Bevel Gear for Crusher Reducers from china suppliers

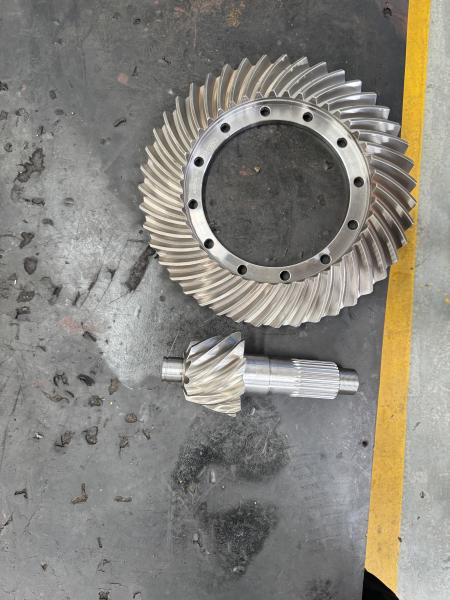

High Strength Spiral Bevel Gear for Crusher Reducers Images
